Hollow through shaft
All hollow through shaft encoders made by TR-Electronic provide an actual position value without any use of battery or counter. The rotary encoder can be carried by the hollow shaft. You have either a compact torque support spring made of steel or a fixing pin for a flange sided nut.

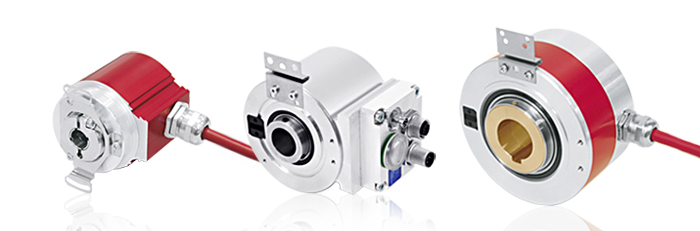

Three families 58, 80 and 110 cover shaft diameters 8 up to 50 mm. The whole range of interfaces is available as you are used to with TR-Electronic.
Two resolution classes perfectly fit your measurement requirements: CEH measueres up to 15 bit per turn, COH up to 18 bit per turn. Up to 256’000 turns are measured absolutely.
Even our encoders with safety integrated are available with hollow through shaft for 20 mm shafts.

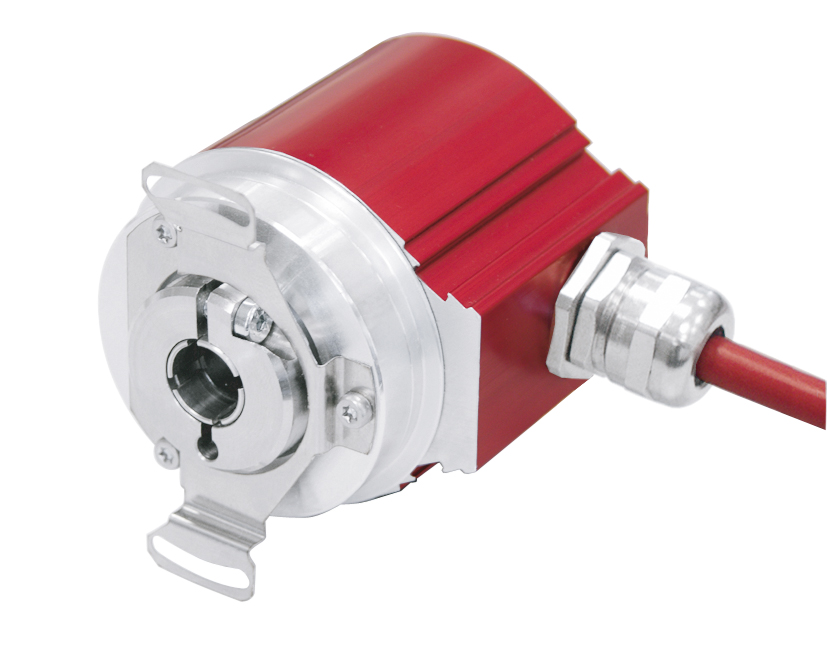

C_H58
| Hollow through shaft rotary encoder with industrial standard dimension 58 mm for shafts up to 12 mm | |
| programmable | |
| Measurement range up to 36 bit | |
| Product selector |

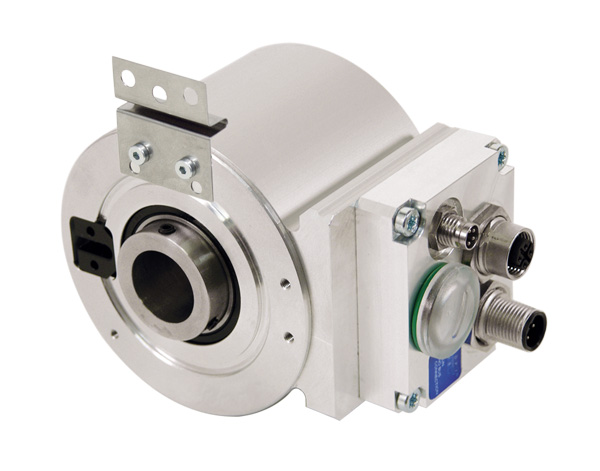

C_H80
| compact and rugged Hollow through shaft rotary encoder for shafts up to 27 mm (with keyway up to 25mm) | |
| smaller diameters are provided with shaft inserts | |
| programmable | |
| Measurement range up to 36 bit | |
| Product selector |

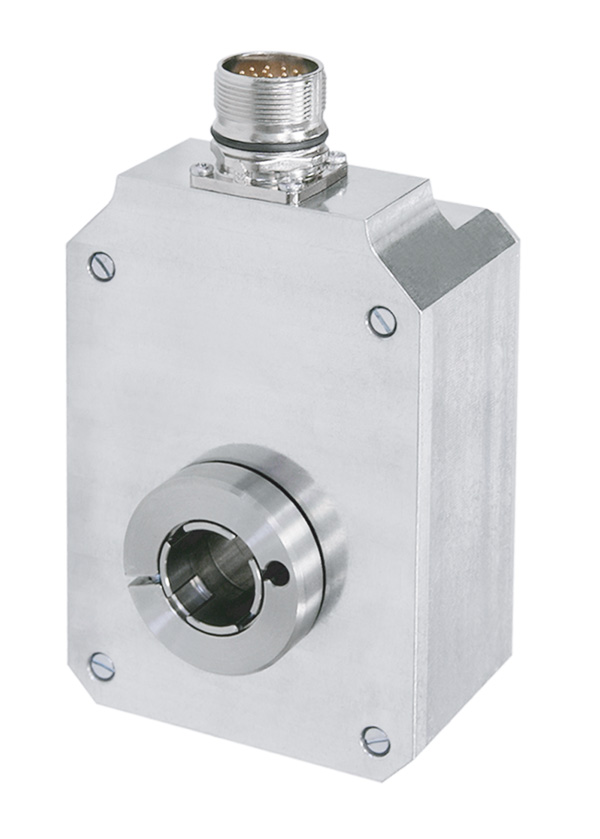

Q_H80
| due to bigger dimensions, Q_H80 provides more space for conplex interface combinations (Fieldbus + SSI, Commutation signals…) | |
| available with redundant singleturn detection (QDH80) | |
| Product selector |

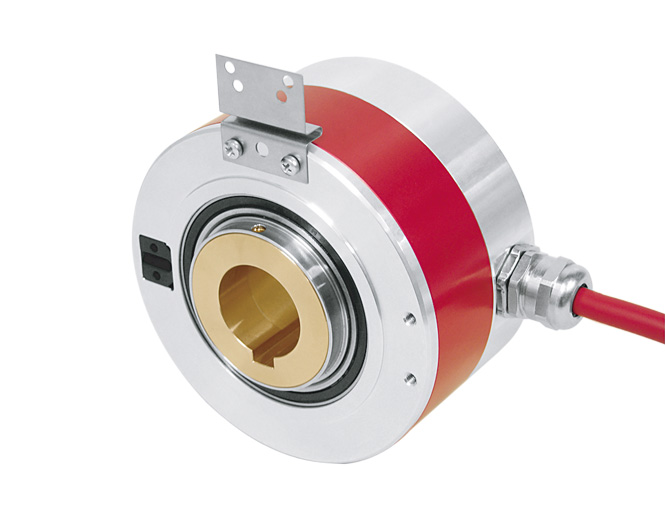

C_H110
| rugged Hollow thru shaft rotary encoders for shafts up to 50 mm | |
| smaller diameters with shafts are provided with shaft inserts | |
| programmable | |
| Measurement range up to 36 bit | |
| Product selector |

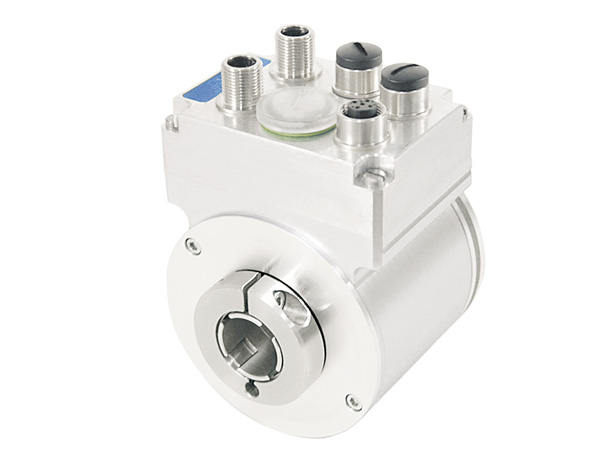

CDH75
| Rotary encoder with safety integrated SIL3, PLe | |
| Position and Speed Signal gaples direct via PROFIsafe (PROFIBUS, PROFINET) or openSAFETY (Powerlink) gapless into safety Controls | |
| Product selector |
All TR-Electronic standard/compact rotary encoders with hollow through shaftat a glance:
